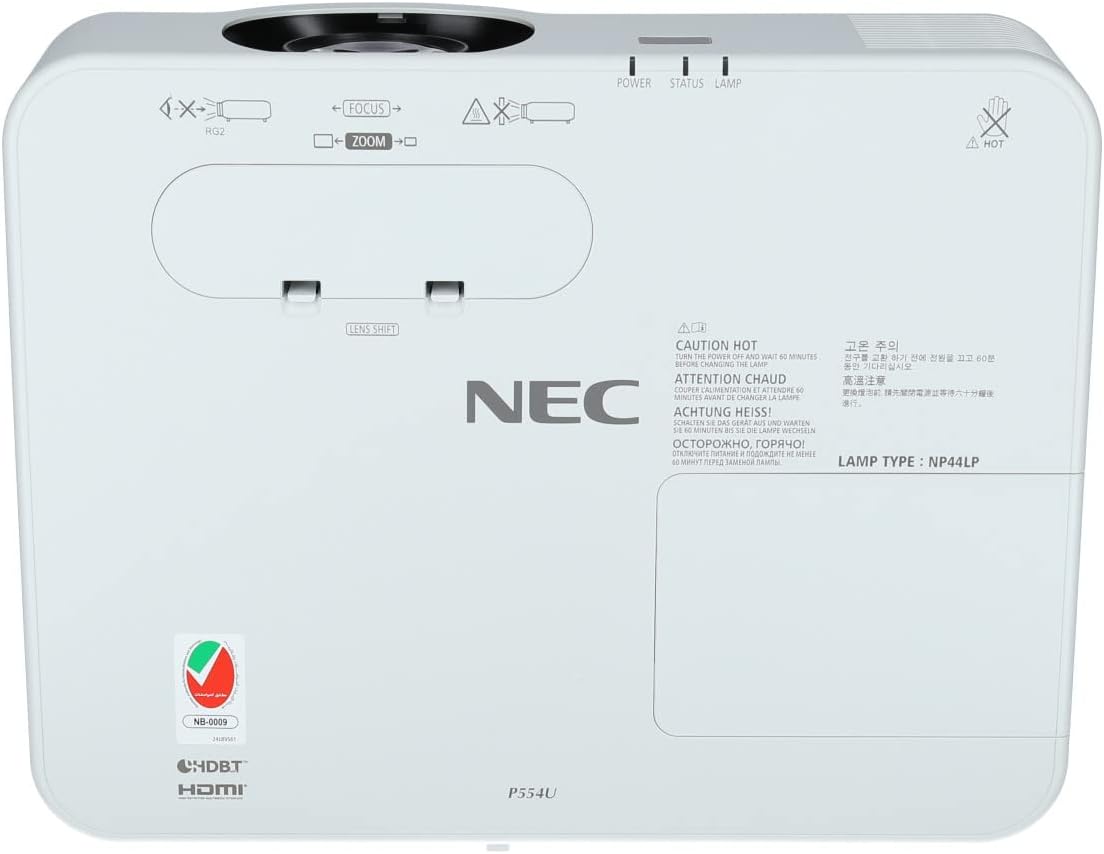

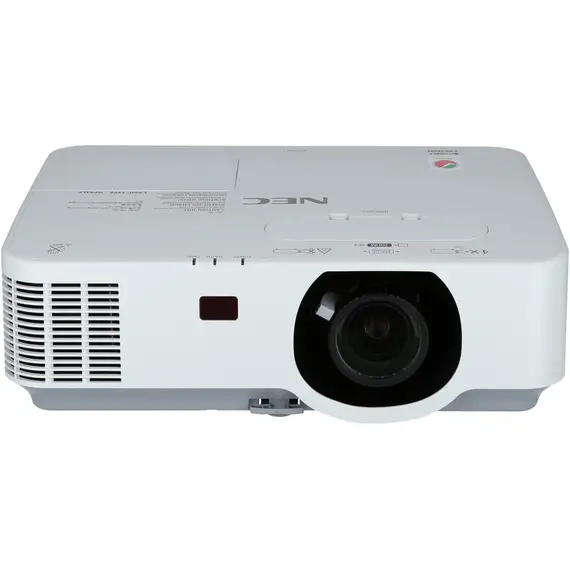

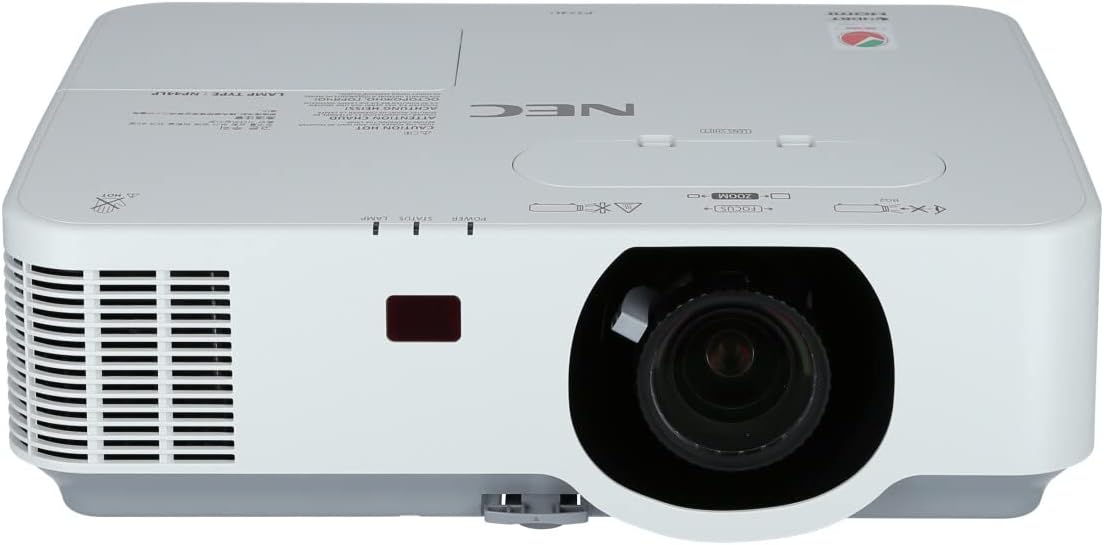

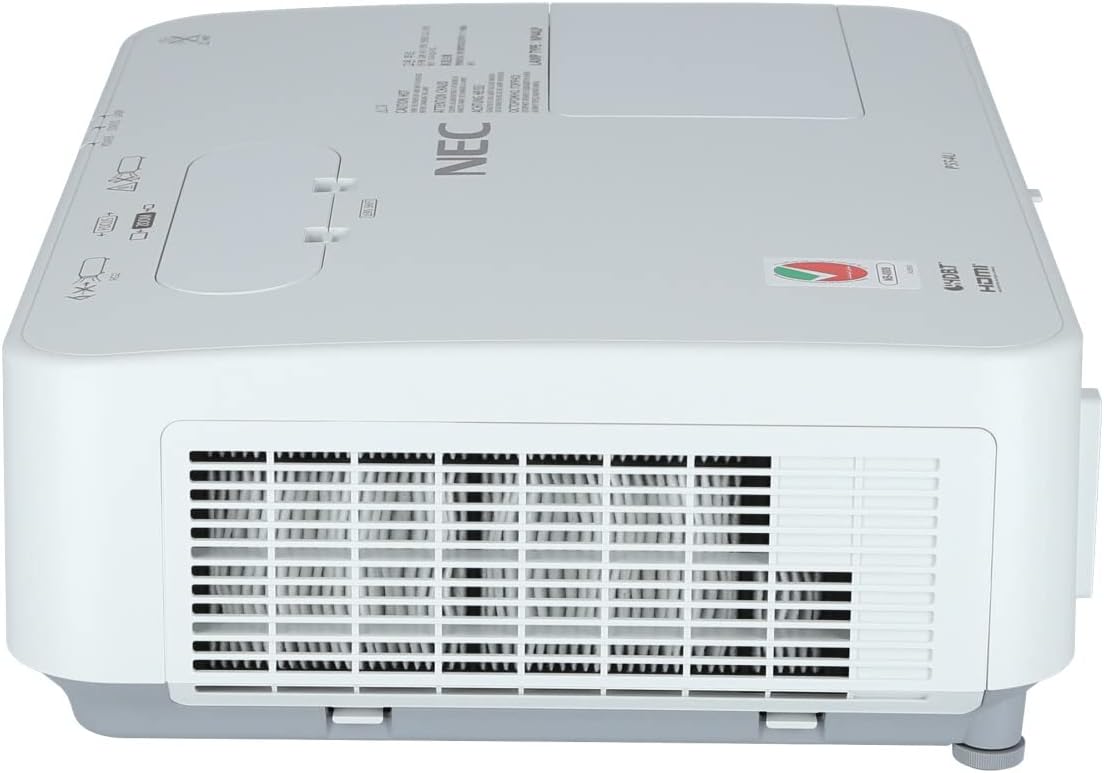

NEC P554U 3LCD Projector Specs

rom NEC — Discontinued December 2024   The NEC P554U projector includes advanced installation features such as horizontal & vertical lens shift and HDBaseT connectivity that provide greater installation flexibility. Adding horizontal and vertical keystone correction along with cornerstone and pincushion adjustment ensures the image will be square on the screen even if installation challenges exist. The long-life lamp reduces maintenance and lowers the total cost of ownership. The NEC P554U was also marketed as the

White Brightness

5,300 Lumens (ANSI)¹ / 4,250 Lumens (Eco)

Resolution

1920x1200

Aspect Ratio

16:10 (WUXGA)

Contrast

15,000:1 (full on/off)

Dynamic Iris

Yes

Display Type

2 cm 3LCD

Color Processing

8-bit

Video Modes

720p, 1080i, 1080p/60, 576i, 576p, 480p, 480i

Data Modes

MAX 1920x1200

Lamp Type

330W NSH bulb

Lamp Life

4,000 hours  / 8,000 hours (Eco)

Lamp Model

NP44LP  Buy ReplacementLamp

Included Lens

1.65x manual zoom , manual focus

Optional Lenses

No

Lens Shift

Horizontal +/-15% & Vertical +55%

Throw Distance

1.3 m - 7.8 m  Calculate Throw Distance

Image Size

76 cm - 762 cm

Throw Ratio

1.20:1 - 2.00:1 (D:W)

Digital Zoom

Yes

Digital Keystone

Horizontal & Vertical

Projector Size

14 cm x 42 cm x 33 cm (HxWxD)

Weight

4.8 kg

Audible Noise

37 dB  / 34 dB (Eco)

Internal Speakers

20.0 Watts Mono

Power

457 Watts 100V - 240V

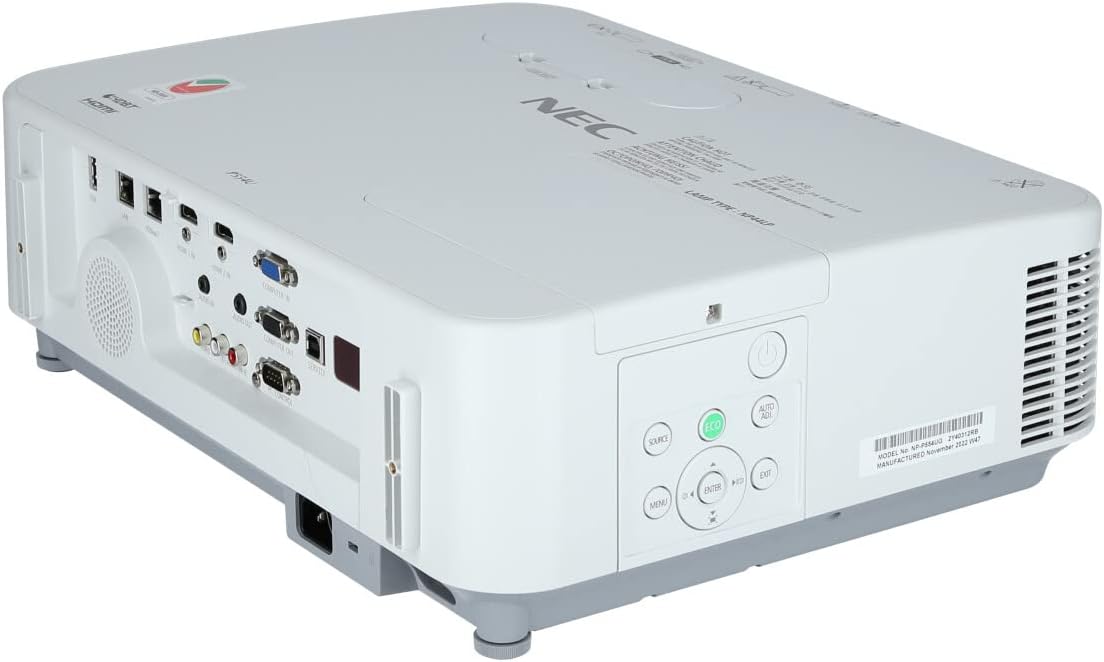

Connection Panel

Audio In: Mini Jack

Audio In: RCA

Audio Out: Mini Jack

Composite: RCA

HDBaseT: RJ-45

HDMI x 2

Network: RJ-45

RS232: DB-9pin

USB x 2

VGA In: Dsub-15pin

VGA Out: Dsub-15pin

Features

Geometric Correction

Blackboard Mode

Crestron RoomView™
